Application of High Accuracy Roughness Tester TR200

Scope of use of roughness tester TR200

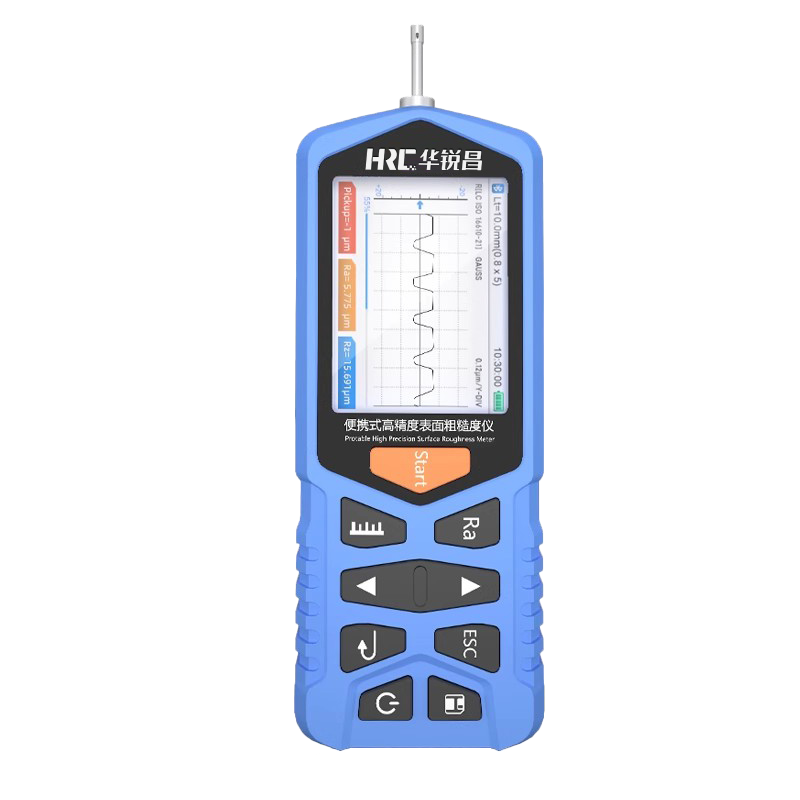

Roughness Tester TR200 is a high-precision, multi-functional portable surface roughness measuring instrument, which is widely used in many fields such as machining, manufacturing, testing, commodity inspection and so on. Its powerful measuring ability and convenient operation make it play an important role in the detection of surface roughness of all kinds of workpieces.

Scope of use

TR200 Roughness Tester can measure the roughness of the surface of many kinds of machined parts, including but not limited to the following types.

1. Flat surfaces: It is suitable for roughness inspection of various metal and non-metal flat surfaces, such as machine tool table, workpiece reference surface, etc.

2. Inclined and tapered surfaces: capable of accurately measuring the surface roughness of inclined or tapered surfaces, suitable for the detection of complex workpieces such as helical gears and tapered shafts.

3. Outer cylindrical surface: Accurate measurement of outer surface roughness for cylinders, suitable for inspection of shafts and rollers.

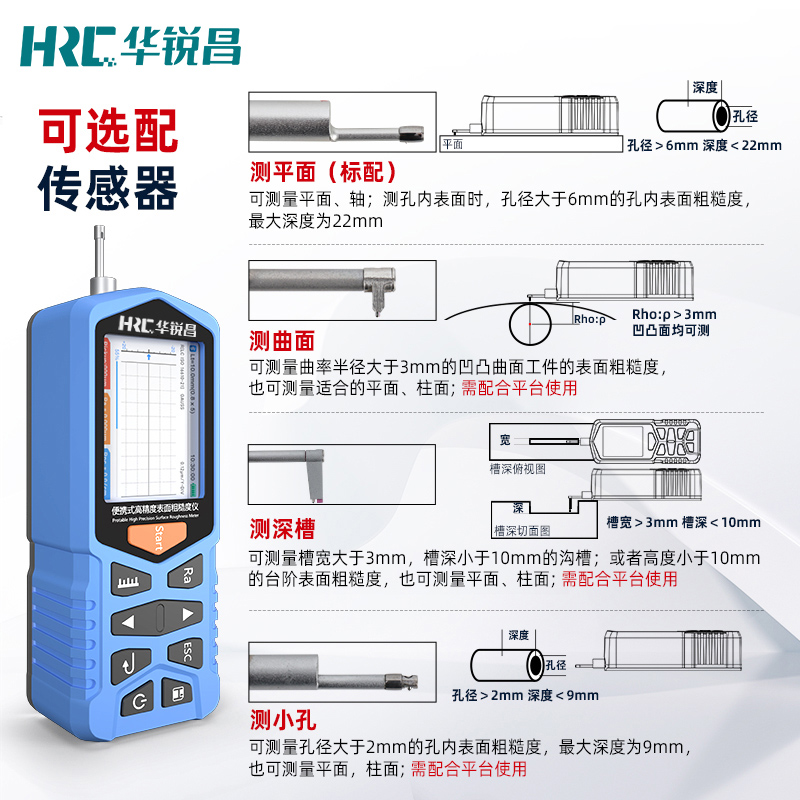

4. Surface: Equipped with special surface sensor, it can realize the surface roughness of complex surfaces (such as spherical and curved parts). Measurement.

5. Small holes and internal holes: Through the small hole sensor, TR200 can penetrate into small holes to measure the internal surface roughness of small diameter holes.

6. Grooves and deep grooves: The bottom and sidewall roughness of grooves and deep grooves can be accurately measured by using a groove sensor or a deep groove sensor.

TR200 roughness meter is not only suitable for the laboratory environment, but also in the production site, testing station and commodity inspection department for rapid and accurate roughness testing, especially suitable for large workpieces and production line on-site inspection. Its non-contact or slight contact measurement method will not cause damage to the surface of the workpiece, ensuring the reliability and safety of the measurement.

Model Features

 High precision: TR200 roughness tester has a measuring accuracy of up to 0.001μm, which meets various high-precision measurement needs.

 Multifunctionality: It can measure and display up to 19 roughness parameters (such as Ra, Rz, Rq, Rt, Rp, Rv, etc.) to meet different industry standards and application requirements.

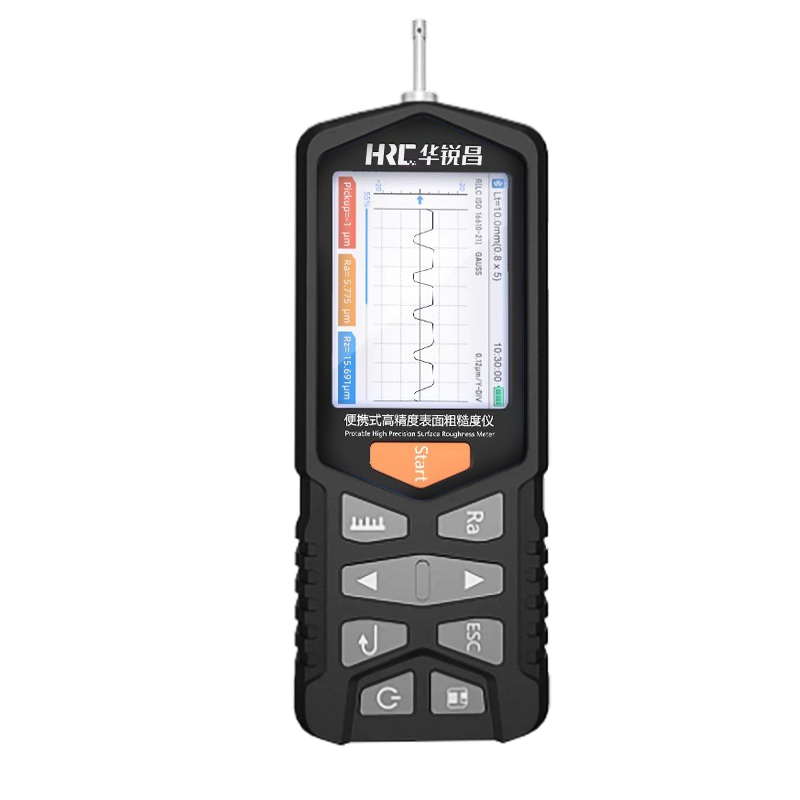

 Convenient operation: adopts Chinese and English menu operation interface, LCD graphic display function is intuitive and clear, user-friendly.

Data storage and communication: built-in storage function, can store 100 groups of measurement data, and support communication with PC through USB interface, convenient data management and Analyzing.

Long battery life: Equipped with high-quality lithium-ion rechargeable battery, high capacity, no memory effect, continuous working time of more than 20 hours.

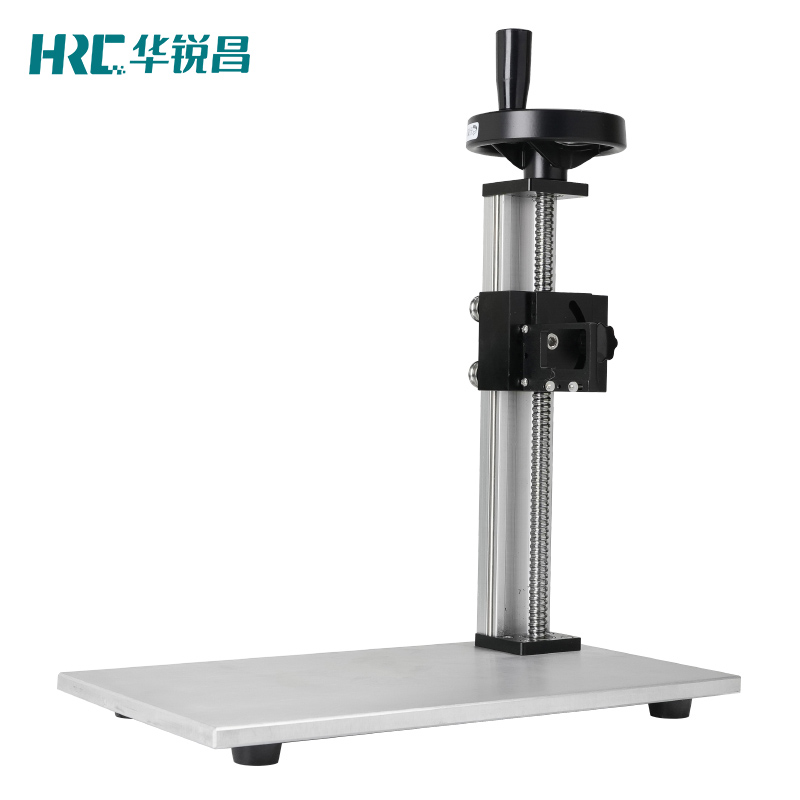

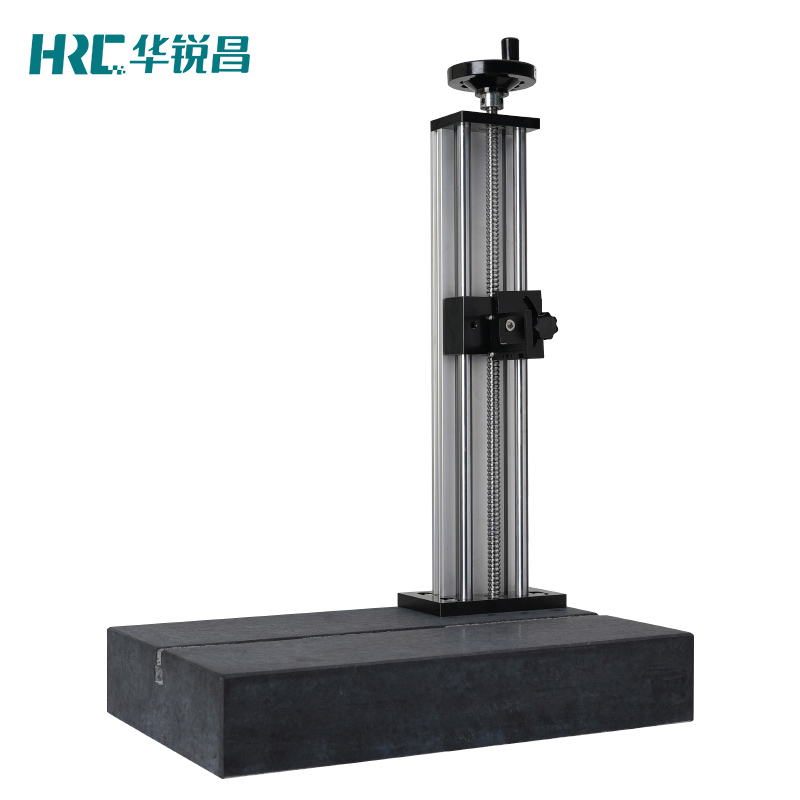

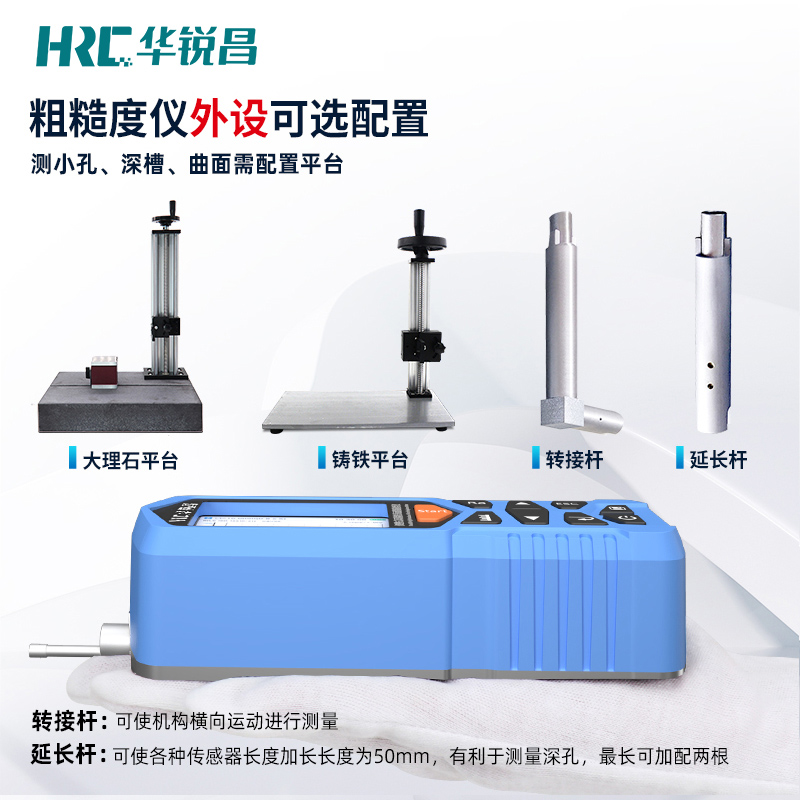

A variety of optional accessories: provide a variety of optional accessories such as surface sensor, small hole sensor, groove sensor, micro printer, etc., to meet the needs of different measurement scenarios. Meet the needs of different measurement scenarios.

TR200 roughness meter has become an indispensable inspection tool in the fields of machining and manufacturing with its wide range of applications, high-precision measurement capability and convenient operation. Whether it is for laboratory research or on-site inspection, TR200 can provide accurate and reliable surface roughness data to help product quality control and process optimization.
